使用 Line-Item-Manager 管理 Prebid 订单

关联阅读: https://kwokronny.com/post/header-bidding-with-prebid

安装 line-item-manager

环境配置

安装python3 具体根据系统安装 https://www.python.org/downloads/

python3安装完成后用 pip 下载 line-item-manager

bash

复制成功

pip install line-item-manager
# 已安装可升级
pip install --upgrade line-item-manager

获取 GAM 密钥文件并开启配置权限

根据链接：https://developers.google.com/ad-manager/api/start?hl=zh-cn 页面中视频操作。

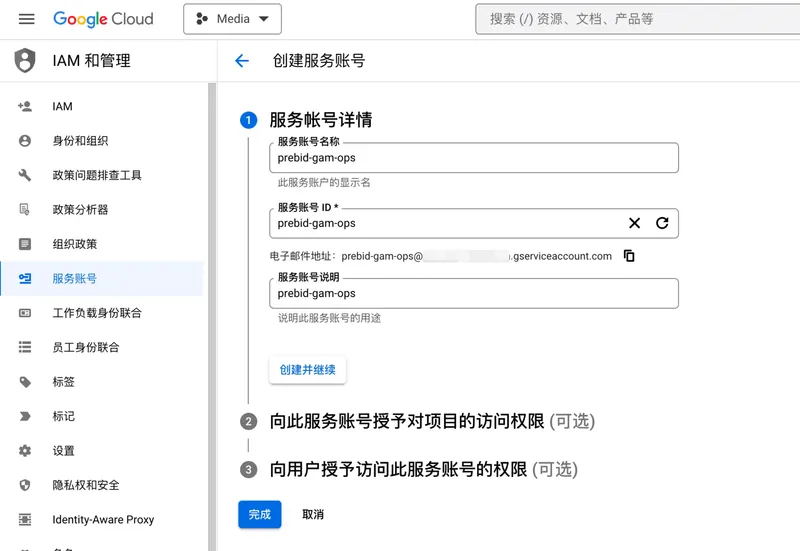

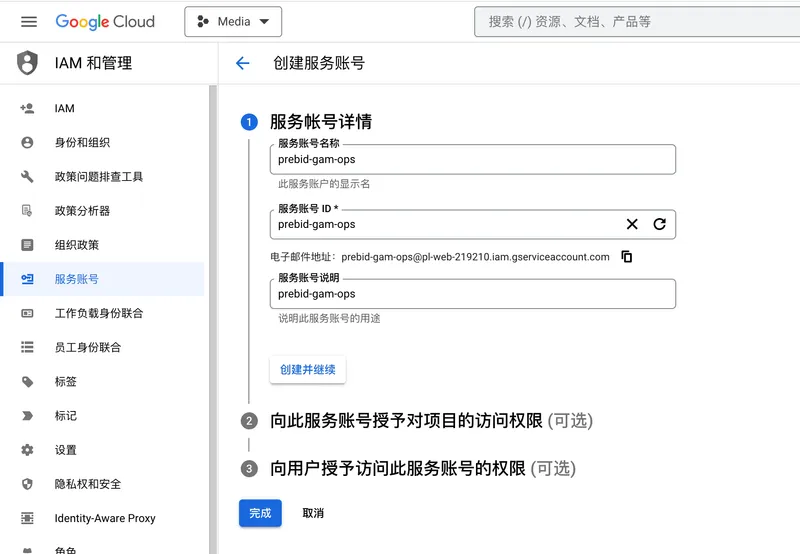

进入 IAM和管理 中 服务账号 并点击创建服务账号，按提示填写服务账号相关信息
点击创建并继续后选择角色 Project > Editor 后，点击完成按钮
搜索刚刚创建的服务账号并点击进入

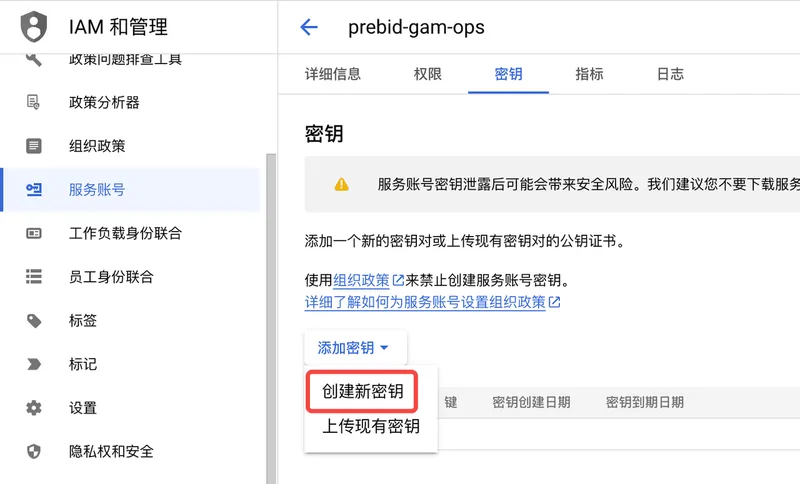

进入服务账号详情，选择 密钥Tab，点击 添加密钥 > 创建新密钥

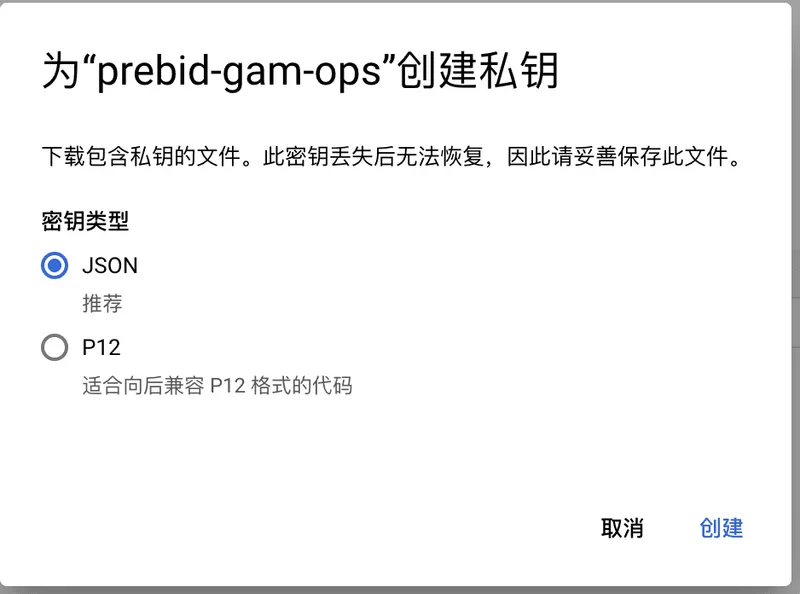

弹窗选择 JSON 项，点击创建，就会自动下载并保存 JSON密钥文件

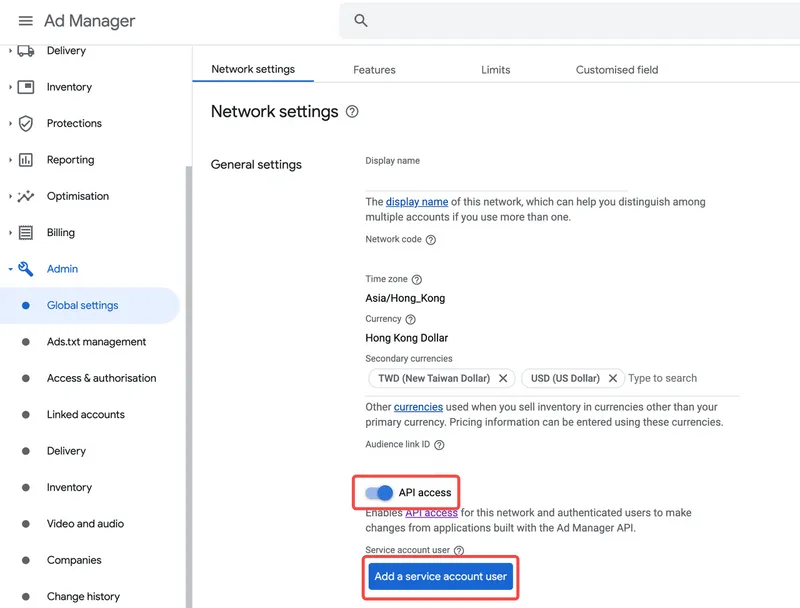

打开 Ad Manage 平台，进入 Admin > Global setting 页面，确认勾选 API access 选项后，点击 Add a service account user 按钮。
输入刚刚创建的服务账号生成的服务账号 Email，并设置相关权限。按保存就基本完成啦

创建配置文件

创建项目将刚刚创建的密钥文件存储在根目录

通过命令生成默认的配置文件，配置文件有大量注释解释字段的含义

bash

复制成功

line_item_manager show > prebid_config.yml

⚠️ 重要，配置前请认真阅读下面文档

Getting Started with Prebid for Header Bidding

Send All Bids vs Top Price

Order 与 line-Item 设置

prebid_config.yml yaml

复制成功

###############################################################################
# Orders (required)
# Allowed Templating Key Words: Bidder, Media, Order, Misc
###############################################################################
order:
  name: "Prebid-{{ bidder_name }}-{{ media_type }}-{{ time }} {{ cpm_min }}-{{ cpm_max }}"
  # appliedTeamIds: # list (optional)
  #   - 12345678
  #   - 23456789
###############################################################################
# Line Items (required)
# Allowed Templating Key Words: Bidder, Media, CPM, Misc
#
# Supported Types: price_priority, standard, sponsorship
# datetimes use: "%m/%d/%y %H:%M" (ex. 11/17/20 21:28)
#   - default timezone is UTC
# timezones: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones
###############################################################################
line_item:
  name: "Prebid-{{ bidder_name }}-{{ media_type }}-{{ time }} @ {{ cpm }}"
  item_type: "price_priority"
  # Optional
  # priority: 12
  # goal: # required if sponsorship item_type
    # units: 5
    # unitType: "VIEWABLE_IMPRESSIONS"
    # goalType: "LIFETIME"
  # start_datetime: "11/17/20 21:28"
  # end_datetime: "12/17/20 21:28"
  # timezone: "UTC"

在 prebid-line-item-manager 文件夹中创建配置文件 config.yml，具体配置文档可移步至Line-Item-Manager文档查看调整。

prebid_config.yml yaml

复制成功


publisher:
  network_code: "[Google广告网络Code]"
  network_name: "[Google广告网络Name]"
advertiser: # at least one of the following is required {id, name}, id is checked first
  name: "Prebid by Ronny"
  # id: 123517519
  # type: "AD_NETWORK" # optional: defaults to "ADVERTISER"
###############################################################################
# Creatives (required)
# Allowed Templating Key Words: Bidder, Media, Misc
#
# For additional explanations on settings see the following:
#   banner: https://docs.prebid.org/adops/step-by-step.html
#   video: https://docs.prebid.org/adops/setting-up-prebid-video-in-dfp.html
###############################################################################
creative: # at least one of the following types is required {video, banner}
  name: "Prebid-{{ media_type }}"
  banner:
    safe_frame: False # optional: defaults to True
    # size_override: False # optional: defaults to True with a 1x1 creative
    sizes: # list
      - width: 1
        height: 1
      - width: 300
        height: 250
      - width: 320
        height: 480
    snippet: |
      <script src = "https://cdn.jsdelivr.net/npm/prebid-universal-creative@latest/dist/%%PATTERN:hb_format%%.js"></script>
      <script>
        var ucTagData = {};
        ucTagData.adServerDomain = "";
        ucTagData.pubUrl = "%%PATTERN:url%%";
        ucTagData.targetingMap = %%PATTERN:TARGETINGMAP%%;

        try {
          ucTag.renderAd(document, ucTagData);
        } catch (e) {
          console.log(e);
        }
      </script>
    # max_duration: 15000 # optional: defaults to 30000, see settings.yml
    # duration: 15000 # optional: defaults to value of max_duration above
###############################################################################
# Orders (required)
# Allowed Templating Key Words: Bidder, Media, Order, Misc
###############################################################################
order:
  name: "Prebid-{{ media_type }}-{{ time }} {{ cpm_min }}-{{ cpm_max }}"
  # appliedTeamIds: # list (optional)
  #   - 12345678
  #   - 23456789
###############################################################################
# Line Items (required)
# Allowed Templating Key Words: Bidder, Media, CPM, Misc
#
# Supported Types: price_priority, standard, sponsorship
# datetimes use: "%m/%d/%y %H:%M" (ex. 11/17/20 21:28)
#   - default timezone is UTC
# timezones: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones
###############################################################################
line_item:
  name: "Prebid-{{ media_type }}-{{ time }} @ {{ cpm }}"
  item_type: "price_priority"
  # Optional
  # priority: 12
  # goal: # required if sponsorship item_type
    # units: 5
    # unitType: "VIEWABLE_IMPRESSIONS"
    # goalType: "LIFETIME"
  # start_datetime: "11/17/20 21:28"
  # end_datetime: "12/17/20 21:28"
  # timezone: "UTC"
rate:
  currency: "USD" # required
  granularity: #
    type: "med" # required, choices: "low", "med", "high", "auto", "dense", "custom"
    # https://github.com/prebid/line-item-manager/blob/fdefe3bfbbe1ebd4d43d9e94a4053c7a957d859f/line_item_manager/conf.d/settings.yml#L51
    # custom: # optional, requires type "custom" above
    #   - min: 0.01
    #     max: 1.50
    #     interval: 0.01
    #   - min: 30.50
    #     max: 50.00
    #     interval: 0.50
  # optional properties
  # vcpm: 100000 # viewable impressions will be enabled

Creative 广告素材设置

prebid_config.yml bash

复制成功

###############################################################################
# Creatives (required)
# Allowed Templating Key Words: Bidder, Media, Misc
#
# For additional explanations on settings see the following:
#   banner: https://docs.prebid.org/adops/step-by-step.html
#   video: https://docs.prebid.org/adops/setting-up-prebid-video-in-dfp.html
###############################################################################
creative: # at least one of the following types is required {video, banner}
  name: "Prebid {{ bidder_name }}-{{ media_type }}"
  banner:
    # safe_frame: False # optional: defaults to True
    # size_override: False # optional: defaults to True with a 1x1 creative
    sizes: # 配置广告素材大小
	    - height: 1
		    width: 1
      - height: 480
        width: 640
      # ...
    snippet: |
	    # 广告素材代码片段，根据广告运营策略选择对应的素材
      <script src = "https://..."></script>
        <script>
          ...
        </script>

根据下面的文档配置素材 GAM Step by Step - Banner/In-Renderer/AMP/Native Creatives

Send all bids 对应使用的素材

html

复制成功

<script src = "https://cdn.jsdelivr.net/npm/prebid-universal-creative@latest/dist/PUCFILE"></script><script>
  var ucTagData = {};
  ucTagData.adServerDomain = "";
  ucTagData.pubUrl = "%%PATTERN:url%%";
  ucTagData.adId = "%%PATTERN:hb_adid_BIDDERCODE%%";
  ucTagData.cacheHost = "%%PATTERN:hb_cache_host_BIDDERCODE%%";
  ucTagData.cachePath = "%%PATTERN:hb_cache_path_BIDDERCODE%%";
  ucTagData.uuid = "%%PATTERN:hb_cache_id_BIDDERCODE%%";
  ucTagData.mediaType = "%%PATTERN:hb_format_BIDDERCODE%%";
  ucTagData.env = "%%PATTERN:hb_env%%";
  ucTagData.size = "%%PATTERN:hb_size_BIDDERCODE%%";
  ucTagData.hbPb = "%%PATTERN:hb_pb_BIDDERCODE%%";
  // mobileResize needed for mobile GAM only
  ucTagData.mobileResize = "hb_size:%%PATTERN:hb_size_BIDDERCODE%%";
  // these next two are only needed for native creatives but are ok for banner
  ucTagData.requestAllAssets = true;
  ucTagData.clickUrlUnesc = "%%CLICK_URL_UNESC%%";

  try {
    ucTag.renderAd(document, ucTagData);
  } catch (e) {
    console.log(e);
  }
</script>

Send Top Price Bid 对应使用的素材

html

复制成功

<script src = "https://cdn.jsdelivr.net/npm/prebid-universal-creative@latest/dist/PUCFILE"></script><script>
  var ucTagData = {};
  ucTagData.adServerDomain = "";
  ucTagData.pubUrl = "%%PATTERN:url%%";
  ucTagData.targetingMap = %%PATTERN:TARGETINGMAP%%;
  ucTagData.hbPb = "%%PATTERN:hb_pb%%";
  // these next two are only needed for native creatives but are ok for banner
  ucTagData.requestAllAssets = true;
  ucTagData.clickUrlUnesc = "%%CLICK_URL_UNESC%%";

  try {
    ucTag.renderAd(document, ucTagData);
  } catch (e) {
    console.log(e);
  }
</script>

Custom Granularity 价格自定义粒度设置

设置后将根据 rate 对应订单项，如：

假设你的价格粒度设置为：

价格区间：$0.10~$20.00，
间隔(interval) 为：0.10 那么将为你的订单生成 200 个订单项

prebid_config.yml yaml

复制成功

###############################################################################
# Rate (required)
# Allowed Templating Key Words: None
#
# Granularity type definitions can be found here:
#   https://docs.prebid.org/prebid-mobile/adops-price-granularity.html
#
# NOTE:
#   1. granularity in Prebid.js config must align with this granularity
#   2. all currency values are rounded to two decimal places (closest hundreth)
###############################################################################
rate:
  currency: "USD" # required
  granularity:
    type: "med" # required, choices: "low", "med", "high", "auto", "dense", "custom"
    # custom: # optional, requires type "custom" above
    #   - min: 0.10
    #     max: 30.00
    #     interval: 0.10
    #   - min: 30.50
    #     max: 50.00
    #     interval: 0.50
  # optional properties
  # vcpm: 100000 # viewable impressions will be enabled

执行创建程序

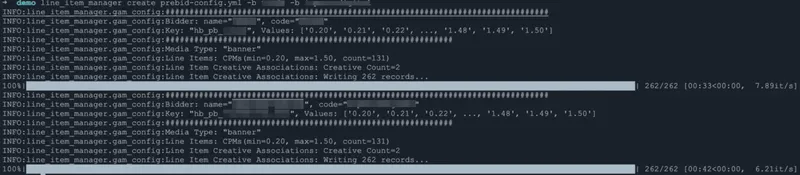

成功的话就会打印以上信息完成订单创建。

bash

复制成功

line-item-manager create config.yml -b [bidder]

激活订单

进入广告订单管理页面，配置文件中配置了 advertiser.name 可以方便索引到相关订单

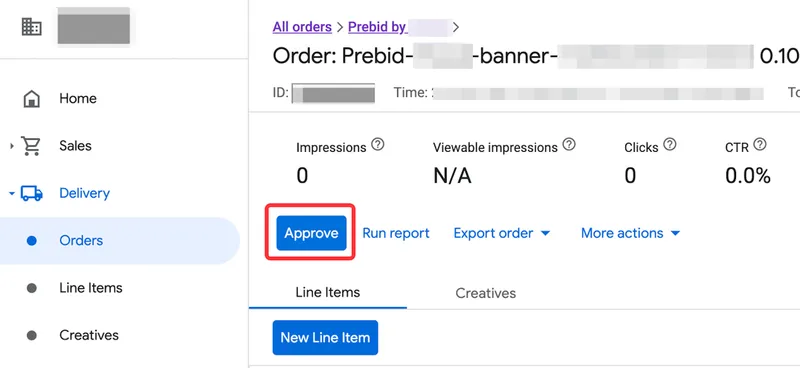

进入详情，点击 Approve 按钮激活订单，等待生效即可。

相关阅读： Line-Item-Manager文档 GAM Step by Step - Banner/In-Renderer/AMP/Native Creatives 发送所有报价与最高价对比 — Send All Bids vs Top Price
